TRYPASS'
High pressure, monobloc, steam generator, with 3 effective smoke passes, with wet bottom, horizontal, efficiency 90%, up to 96% for version EC It is designed for a maximum safety pressure up to 12 bar (or higher on request). The range includes various models with steam production from 2000 to 22000 kg / h. According to current legislation, the TRYPASS’ family of high-pressure steam generators has been subjected to a conformity assessment by a Notified
Body. Compliance with the Essential Safety Requirements of the PED Directive 2014/68 / EU of the pressurized body is evidenced by the CE P.E.D. marking.
General features:

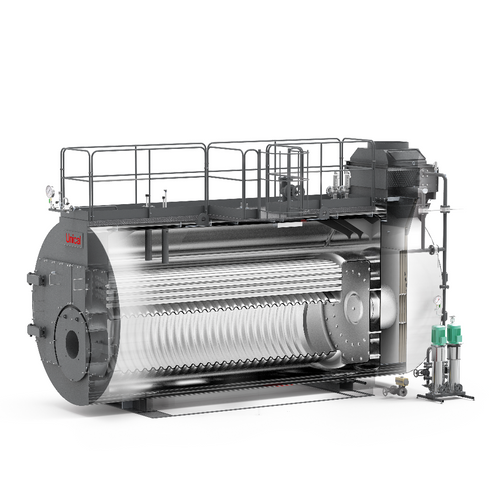

The 3 effective smoke passes generator consists of a horizontal cylindrical furnace with a wet bottom in which the flame develops.
The fumes then enter the first tube bundle at the rear inversion chamber and are conveyed towards the front tube plate. From the front chamber the fumes pass into the second tube bundle and exit
through the rear smoke chamber.
The stem generator is sized to ensure low thermal loads and low polluting emissions.
Find out more:
https://www.unicalboiler.com/products/industrial-369/steam-boilers/378/trypassa��
