Optigo FMS

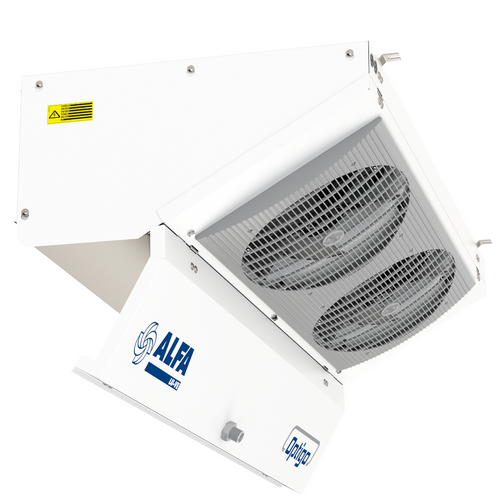

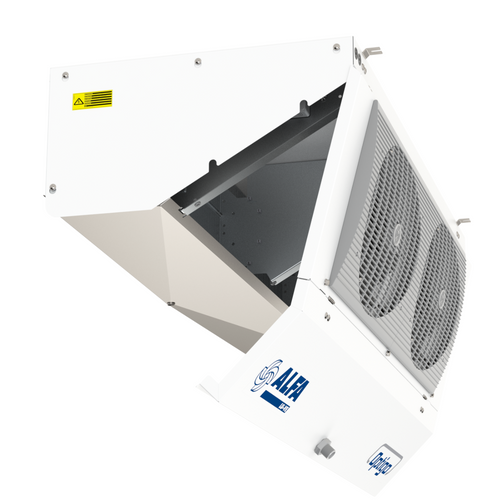

Optigo FMS is a commercial slim air coolers line for general application in small to medium-sized cooling and freezing rooms. All FMS models are characterised by a low silhouette for the efficient use of cold room space. High efficiency coil manufactured from internally grooved Cu tubes and aluminium fins. Maximized performance thanks to the high capacity TURBOCOIL® heat exchanger manufactured with internally grooved tubes and TURBOFIN® fins. Standard fin spacing: 4.5 and 7.0 mm. Galvanized steel casing powder coated RAL 9003 and aluminum drip tray. Dismountable and openable casing for cleaning purposes. FMS units are provided with separated hinges for drip tray and fan plate opening. Plastic drain connection. Fitted with schräder valve on the suction connection for testing purposes. Each heat exchanger is leak tested with dry air and finally supplied with a dry air pre-charge. 1 to 4 fans fitted with AC/EC fan motors, blowing through the coil. Fan diameter 315 mm. Power supply 230/50-60/1. EC 2-speed fan motors, different noise levels. Protection class IP54 for EC motors, IP44 for AC motors. Fan motors wired to connection box. Selection and pricing is to be performed with our air heat exchanger selection software Plair. Selection output includes all relevant technical data and dimensional drawings.
