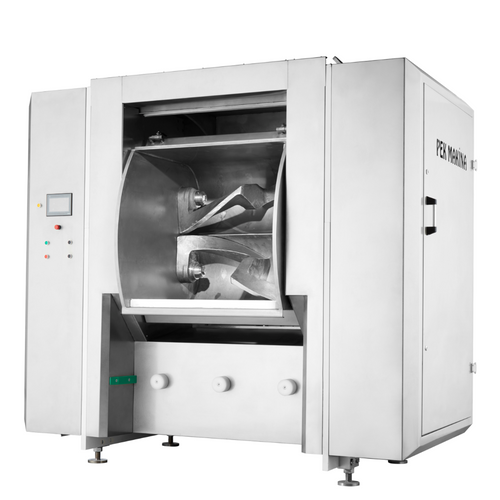

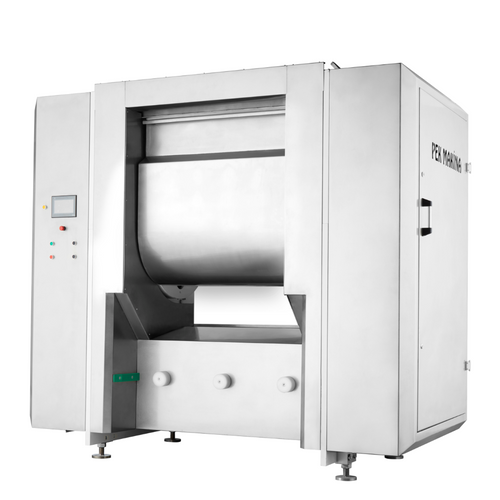

Mixer
The mixer has one piece of Z type mixing arm and the material is casted AISI 304 quality stainless steel
Main structure of the mixer is made of standart steel
Seal parts on the bearings are designed as easily replaceable
Rotation speed of the arm is adjustable
Dough hopper can be tilted with electric motor
Dough hopper maximum tilting angle is 10 degree
The mixer can prepare 500 kg./batch depending on the properties of the dough
The electric control of the mixer can be made from the panel on itself
The hopper is manufactured with double jacket
Hot or cold water can be circulated through the outer wall
The offer does not include any water cooling; heating or circulation systems
Water connection should be made the customer
The jacket is equipped with over pressure valve
The mixer will be delivered together with 1 piece of dough trolley
Electrical control is made by PLC
PLC system has recipe saving option for different products
Mixing arm rotation speed at 50 Hz is 40 rpm
Electric power of the mixing arm is 45 kw
Hopper tilting motor power is 1.5 kw
Total electric power is 46.5 kw
Dimensions of the mixer is (Width X Length X Height) 243cm X 145cm X 252cm
Total weight of the equipment is 4250 kg
500 Kg Single Arm Mixers Dough hopper Volume is 950 Lt
Optional Feed Hole: According to the customer's request
3 holes suitable for automatic dosing can be opened on the dough chamber of the mixer.
