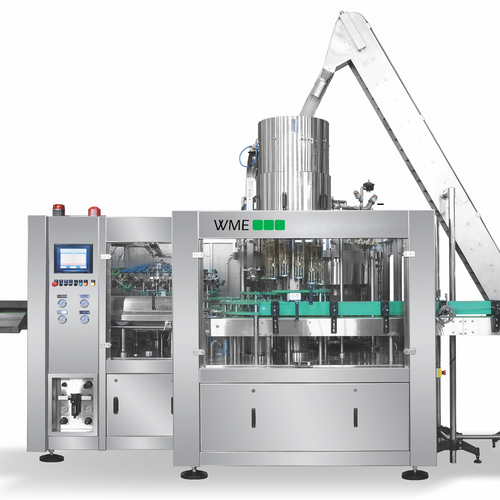

Glass Bottle Filling Triblock
WME presents different size of Triblock-Glass machines ranging from 30 and 50 filling valves and capacity from 5,000 up to 20,000 bottles per hour.Various capping groups can be mounted on the machine like Plastic screw caps, Pressure caps, Twist-off cap.Product: CSD, Non-CSD, Dairy , Edible Liquids
-Fully automatic operation by PLC control.
-Color touch screen panel.
-Electronic speed change in main drive motor with frequency inverter.
-Error diagnostic system.
-CIP system and dummy bottles.
-Filler tank and all the surfaces in the contact with “product or water” made of AISI 304 stainless steel or AISI 316 stainless steel upon request.
-Cap feeding and sorting systems.
-Equipped with level probe to control product level inside the filler tank.
-Polyamide gears to reduce noise and vibration.
-Centralized lubrication panel.
-Automatic washdown system for broken glass bottles.
-Separated or integrated electrical cabinet.
-Height adjustment system in all rinsing, filling and capping sections.
-Easy changeover of spare parts.
-Safety guards made of AISI 304 stainless steel with tempered glass.
-Ability to install AISI 304 stainless steel fully closed top cover with HEPA filters.
Bottle Type: GlassBottle Size: from 250 cc up to 1000 ccCap Type: Aluminium Screw Caps (Pilfer Proof)
Model Rinsing Filling CappingG30 30 30 10
G50 40 50 15
