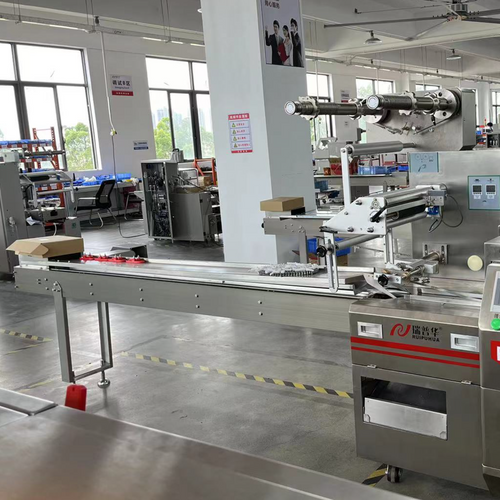

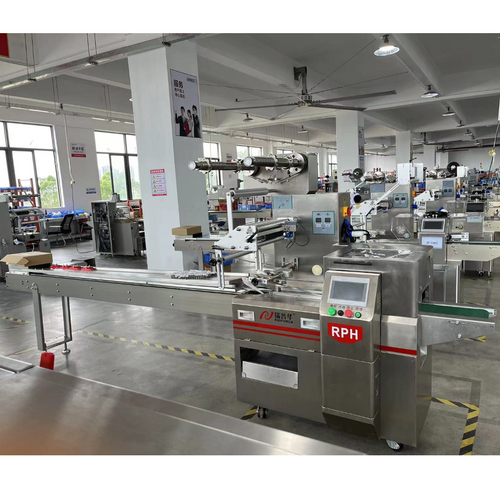

Flow packaging machine ZP-530
1. Machine advantage:
1. With menu storage memory function, can use the memory formula from the touch screen according to different products or packing film.
2. With the industry leading electronic cam algorithm, bag length range of 65mm-600mm,The bag actual length takes effect immediately after setting, save time and packing film.
3. Advanced algorithm for preventing cutting products and empty bag.Packing film stops feeding when no product, save materials.
4. The horizontal sealer, vertical sealer and products feeding are controlled by independent servo motor. Mechanical structure is simple,operation is stable and small noise.
5. The packing machine can track the feeding speed automatically when connected with line.High precision, high speed up to 300 packs/per min with double blades.
6. Human-machine interface,parameter setting is easy and convenient, color mark can automatically track and correct cutting length. Digital input of cutting position makes the sealing and cutting more accurate.
7. Self failures diagnosis, clear failure display.
8. Automatic alignment of single paper, well-known brand servo motor / PLC/ touch screen.above these are machine standard.
9. Double film support rollers, automatic film connection, inflatable, alcohol spray, lifting panel, date printer, vertical seal / output brush,
fully stainless steel frame. preventing cutting products or bag.  Above these are machine optional device.
10. The center distance of the standard horizontal seat knife shaft is 132, which can be changed to 105 or 90 when the product is small and
the required packing speed is high (such as 300 packets / min or above).
Â
2. ZP-530S  Parameter：
Model
ZP-530S
Speed
35-300Â bags/min
Â
Bag size
L:65-600mm W:30-150mm  H:5-50mm
Â
Film width
65-400mm
Material
OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL
Machine size

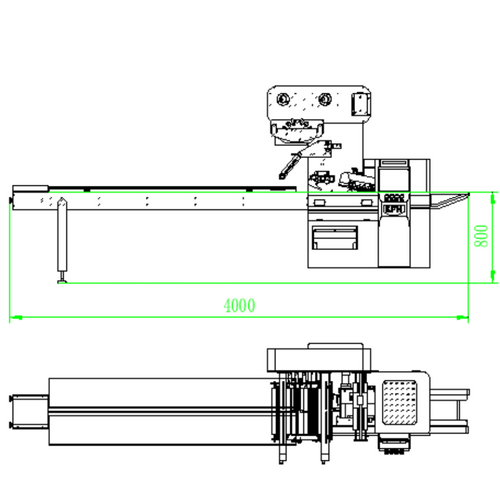

(L)4000X(W)900X(H)1600mm
Powder
6.3kw
Weight
630kg
