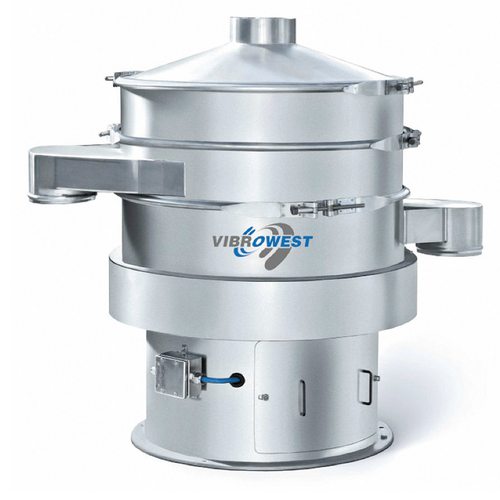

Circular vibrating sieve MR
Available in the following models: 16″ (Ø 400 mm) – 24″ (Ø 600 mm) – 30″ (Ø 800 m) – 36″ (Ø 900 mm) – 48″ (Ø 1200 mm) – 60″ (Ø 1500 mm) – 72″ (Ø 1800 mm) – 90″ (Ø 2200 mm).the vibration is through an unbalanced motor with a double extended shaft, fitted at both ends with eccentric weights. The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of under size material to pass through the screen.
