01 Jan 2025

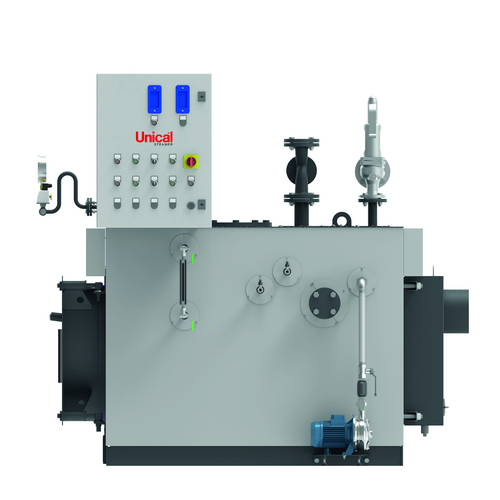

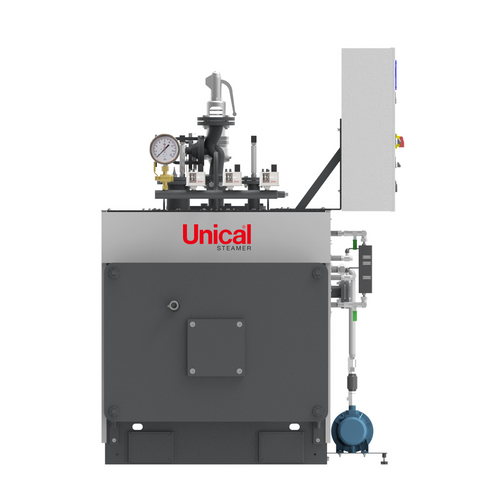

BAHR'UNO CB
Low pressure steam generator, flame inversion type, with wet bottom, efficiency from 91% (STD) to 95% (HP) depending on the type of pipe used.
The BAHR’UNO CB series is a family of steam generators designed for a maximum safety pressure up to 1.0 bar. The range includes various models with steam production from 100 to 1000 kg/h. In accordance with current legislation, the BAHR’UNO CB family of low-pressure steam generators has been subjected to a conformity assessment by a Notified Body. Compliance with the Essential Safety Requirements of the European Directive 2014/68 / EU of the pressure body is evidenced by the CE P.E.D marking.
General characteristics:
Designed in compliance with the EN12953-3: 2016 standard the flame inversion generator consists of a cylindrical furnace, with a wet bottom, in which the flame develops and where the inversion of the combustion gases takes place. The fumes then
enter the tube bundle at the front tube plate and are conveyed towards the rear tube plate from which they exit through the smoke chamber.
The boiler is sized to ensure low thermal loads.
Find out more:
https://www.unicalboiler.com/products/industrial-369/steam-boilers/bahr-uno/3699/bahr-uno-cb
